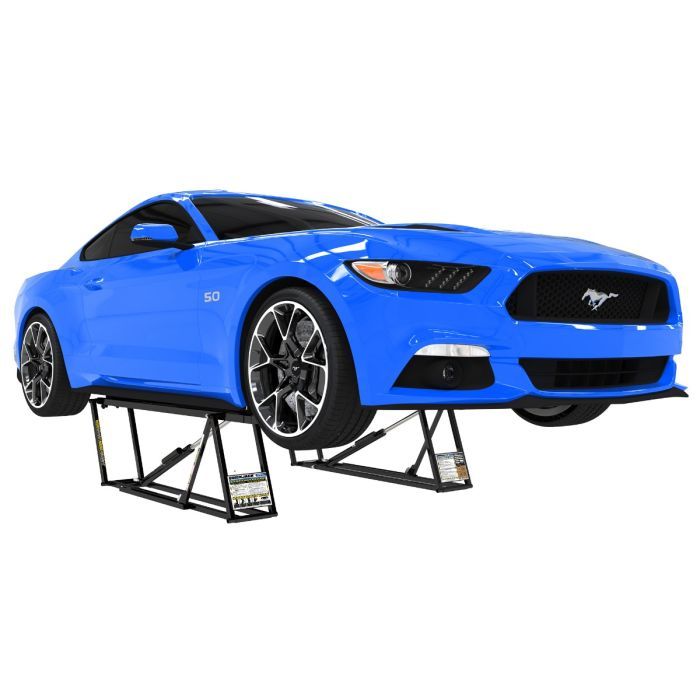

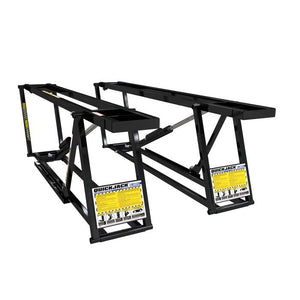

QuickJack 5000TLX Extended-Length Portable Car Lift System

Portable Garage Lift for Longer Wheelbase Vehicles – 5,000 lb Capacity

Looking for a professional-grade portable car lift system that can handle longer wheelbases with ease? Meet the QuickJack 5000TLX – the extended-length version of the best-selling 5000TL. Designed for vehicles with manufacturer-recommended lift points that are just out of reach for standard portable lifts, the 5000TLX solves the problem with a 66" maximum lift point spread and a longer frame to safely accommodate more vehicles than ever before.

Why Choose the 5000TLX?

Many shops and DIYers struggle with vehicle lifts that don’t reach the proper lift points, especially on sedans, sports cars, and newer models. The 5000TLX was engineered to close that gap. It offers an extended 66" lift point reach—6 inches longer than the 5000TL—ensuring better balance, safer lifting, and wider compatibility with cars, trucks, and SUVs (excluding some EVs – for those, check out the 6000ELX).

Whether you’re a home garage enthusiast or operate a professional detailing or repair shop, the 5000TLX delivers a compact, lightweight, and space-saving car lift solution that sets up in seconds and lifts vehicles in just 30 seconds.

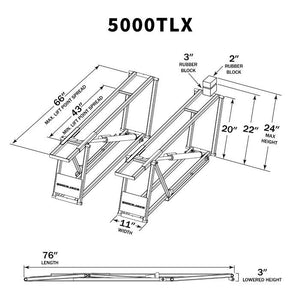

QuickJack specifications diagram

Lifting capacity

5,000 lbs. (2,268 kg)

Lowered height

A - Frame only: 3" (76 mm)

B - With 2" block: 3.5" (89 mm)

Lifting height

D - With 2" block: 21" (521 mm)

E - With 3" block: 22" (546 mm)

F - Max. height: 24" (616 mm)

G - With adapters: 24" (597 mm)

H - With adapters + pin: 26.75"
(673 mm)

Compare All Specifications

Lift point spread

I - Maximum: 66" (1,676 mm)

J - Minimum: 43" (1,092 mm)

Frame dimensions (ea.)

K - Width: 11" (278 mm)

L - Length: 76" (1,930 mm)

A - Height (lowered): 3" (76 mm)

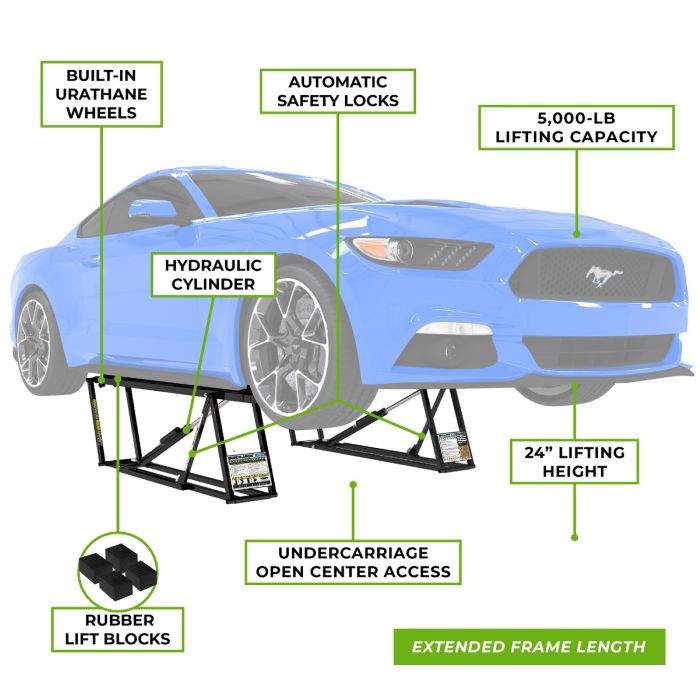

✅ Key Features

66" Extended Lift Point Reach – Ideal for longer wheelbase vehicles
Lifts Up to 5,000 lbs. – Covers most sedans, SUVs, and light trucks
Ultra-Low 3" Frame Height – Slides easily under low-clearance vehicles
Fast 30-Second Rise – Efficiency meets productivity
Auto-Locking Safety Bars – Hands-free safety every time you lift
One-Touch Button Controls – No manual pumping or clunky mechanics
Portable Design – Easy storage and transport

📏 Specifications

Lifting Capacity: 5,000 lbs (2,268 kg)
Minimum Lift Point Spread: 43"
Maximum Lift Point Spread: 66"
Frame Length (each): 76"
Width: 11"
Weight: 81.5 lbs per frame
Lifting Height (Max): 24" – up to 26.75" with adapters
Time to Full Rise: 30 seconds
Power Unit Weight: 15 lbs
110V AC or 208-240V AC available
Shipping Weight: 250 lbs
Free Shipping to the 48 Contiguous States

🧰 Perfect For:

Home garages with limited space
Mobile mechanics and detailers
Auto enthusiasts looking for a reliable garage lift
Shops servicing sedans, trucks, and long-wheelbase vehicles

🔧 5000TLX vs. BL-5000EXT (SLX Models)

The biggest upgrade? 3 inches more lifting height—perfect for advanced repairs, suspension work, or underbody access. You still get the ultra-low 3” clearance and compact footprint, but now with a wider reach and more capability.

⚠️ Important Note:

Please confirm your vehicle’s jack point spread and wheelbase before ordering. For ultra-short wheelbase cars like Smart cars, the TLX may be too long. In those cases, we recommend the QuickJack 5000TL.

🚚 Fast & Free Shipping

Enjoy FREE shipping within the 48 contiguous states. Your QuickJack 5000TLX ships securely and arrives ready to lift in no time.

Upgrade your garage or shop with the power, safety, and flexibility of the QuickJack 5000TLX – the industry’s first professional-grade portable lift system designed for extended-length vehicles.
