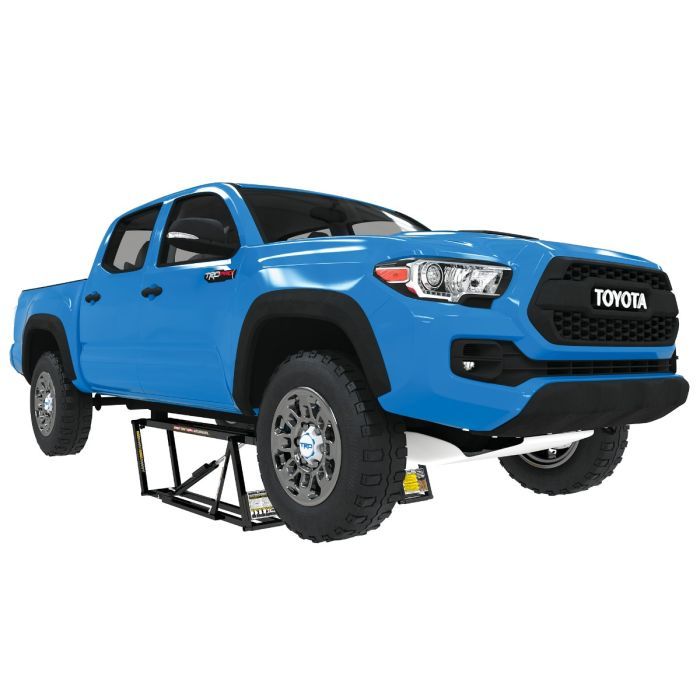

QuickJack 7000TLX Extended-Length Portable Car Lift – 7,000 lb Capacity
Take your garage setup to the next level with the QuickJack 7000TLX — the ultimate portable car lift system built for long-wheelbase vehicles like trucks, SUVs, and full-sized sedans. With a massive 7,000 lb lifting capacity and extended reach, this lift makes routine maintenance, detailing, and inspections faster, safer, and easier than ever.

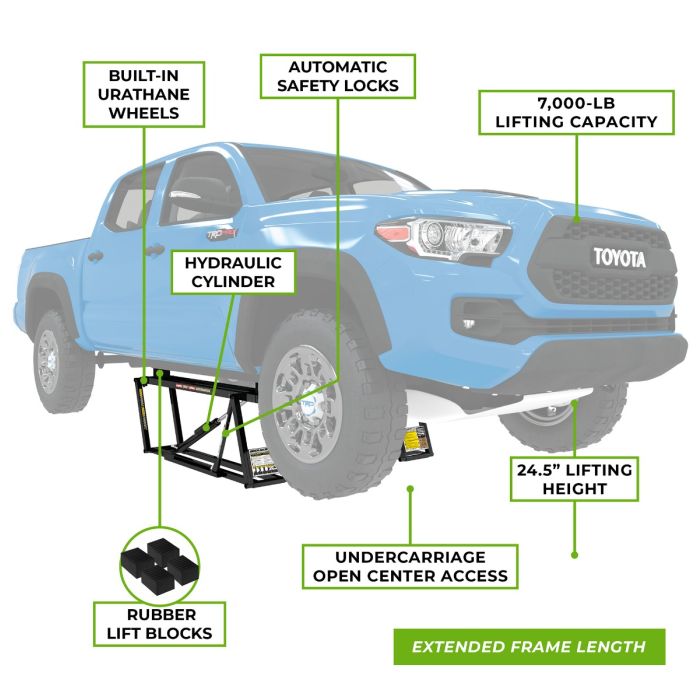

✅ Key Features:
- 7,000 lb lifting capacity – Ideal for trucks, SUVs, and sedans
- Extended-length frame supports lift points up to 66"
- Low-profile design fits under lowered vehicles (only 3.5" tall)
- Full rise in just 30 seconds – no compromise on speed or safety
- Compatible with 110V or 12V power units

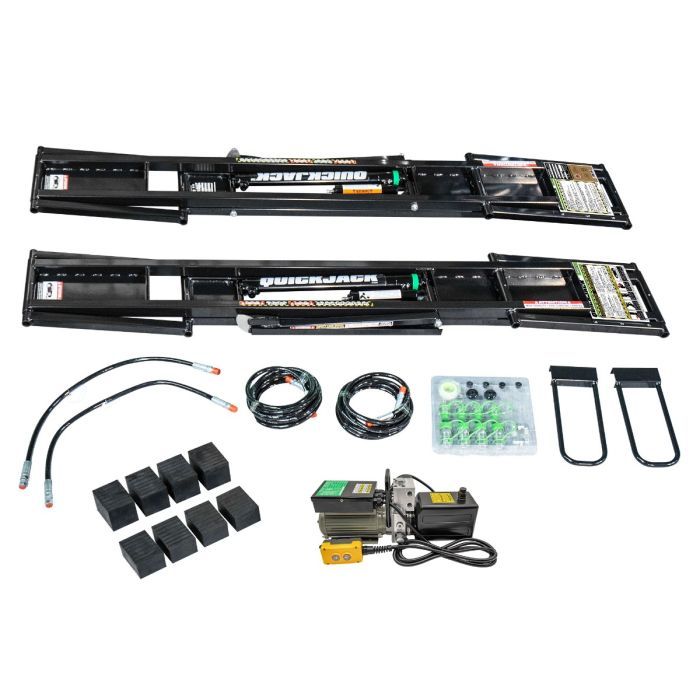

- Includes rubber blocks, hydraulic lines, power unit, and handles

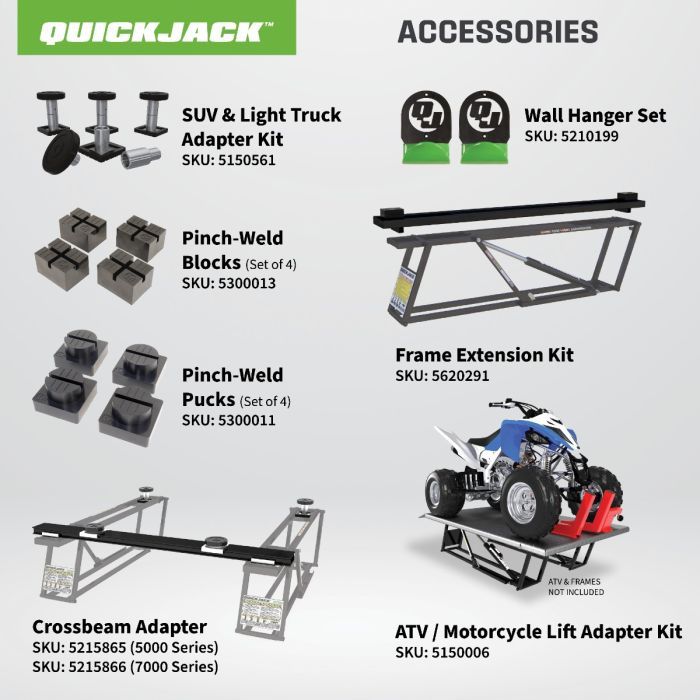

- Optional truck adapters available for even more height
- Portable and compact – perfect for home garages and pro shops

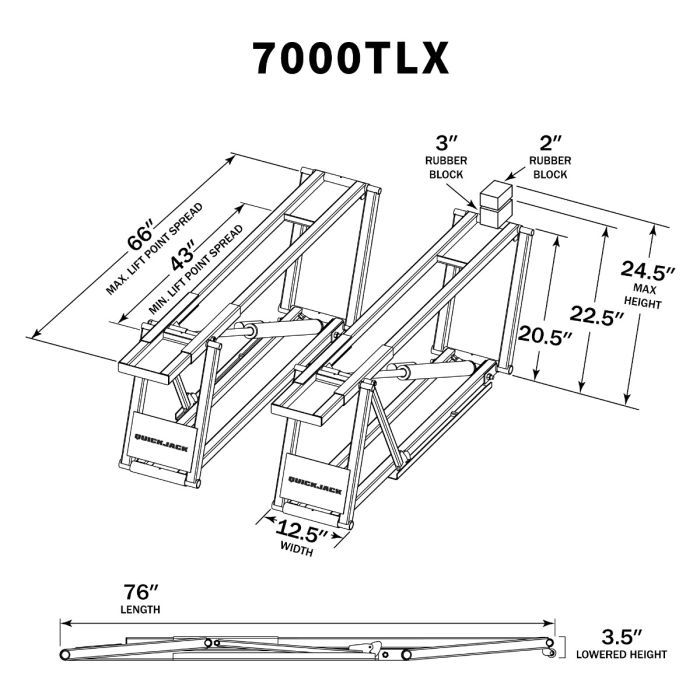

📐 QuickJack 7000TLX Specifications
Lifting capacity:
7,000 lbs (3,175 kg)
Lowered height:
A - Frame only: 3.5” (89 mm)
B - With 2" block: 4” (102 mm)
Lifting height:
D - With 2" block: 21.5” (546 mm)
E - With 3" block: 22.5” (572 mm)
F - Max height: 24.5” (622 mm)
7,000 lbs (3,175 kg)
Lowered height:
A - Frame only: 3.5” (89 mm)
B - With 2" block: 4” (102 mm)
Lifting height:
D - With 2" block: 21.5” (546 mm)
E - With 3" block: 22.5” (572 mm)
F - Max height: 24.5” (622 mm)
G - With adapters: 24.25” (610 mm)
H - With adapters + pin: 27” (686 mm)
Lift point spread:
I - Max: 66” (1,676 mm)
J - Min: 43” (1,092 mm)
Frame dimensions (each):
K - Width: 12.5” (318 mm)
L - Length: 76” (1,930 mm)
Other specs:
Frame weight: 98 lbs (45 kg)
Power unit: 15 lbs (7 kg)
Shipping weight: 304 lbs (138 kg)
Time to full rise: ~30 seconds
H - With adapters + pin: 27” (686 mm)
Lift point spread:
I - Max: 66” (1,676 mm)
J - Min: 43” (1,092 mm)
Frame dimensions (each):
K - Width: 12.5” (318 mm)
L - Length: 76” (1,930 mm)
Other specs:
Frame weight: 98 lbs (45 kg)
Power unit: 15 lbs (7 kg)
Shipping weight: 304 lbs (138 kg)
Time to full rise: ~30 seconds
💡 Why Choose the QuickJack 7000TLX?
This is the go-to lift system for anyone working on larger vehicles in limited spaces. Whether you’re a professional mechanic, mobile detailer, or serious car enthusiast, the 7000TLX delivers unmatched performance in a portable design. ALI-certified safety, rugged durability, and easy stowaway storage make it the smartest lift investment for your garage.
Order yours today and get the confidence of lifting like a pro — anywhere, anytime.
