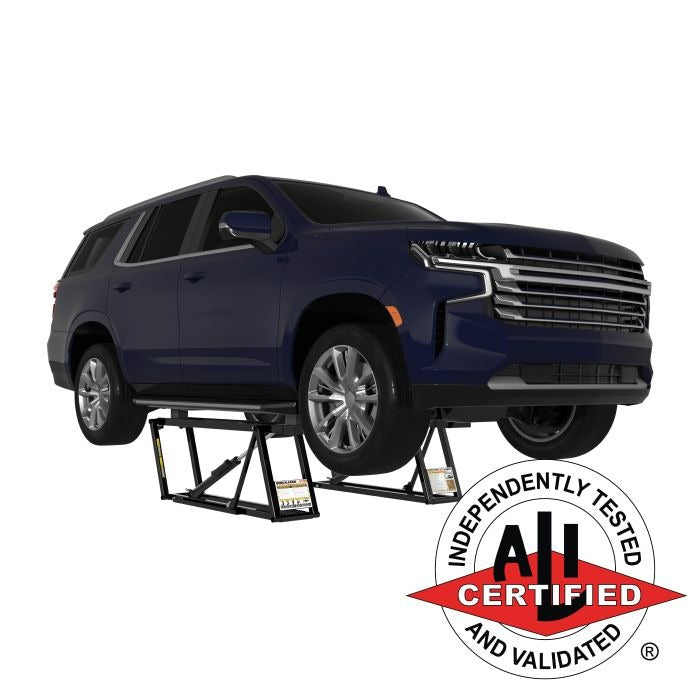

QuickJack 8000TL Portable Car Lift
The QuickJack 8000TL is the most powerful standard-length portable lift in the QuickJack lineup. Designed for SUVs, light-duty trucks, and heavier passenger vehicles, it delivers serious lifting strength without sacrificing portability or ease of storage.
Automatic Safety Locks
The 8000TL includes dual-position automatic safety locks that engage securely as the frames rise, locking at both mid-rise and full-rise heights. To lower the lift, simply flip the lock bar for a safe, controlled descent—no pins, no guesswork.
Heavy-Duty Lifting Power
With a rated 8,000-lb. lifting capacity and up to 24.25 inches of lift height, the 8000TL is built to handle larger vehicles with confidence. It delivers maximum power in a standard-length frame, making it ideal for garages that need strength without extra footprint.
Upgraded Hydraulic System
The redesigned power unit features a pressure-compensated flow divider and independent shut-off solenoids. These ensure both frames lift in perfect unison and remain balanced even if operation stops mid-cycle—critical for heavier vehicles and enhanced safety.
Stronger Frame, Smarter Design
Thicker cross members, improved welds, and reinforced pivot points enhance overall rigidity. These structural upgrades reduce flex, improve alignment, and ensure long-term durability under repeated professional or home use.
One-Handed Pendant Control
QuickJack’s pendant-style controller allows you to raise and lower the lift with one hand—no cranking or manual effort. Keep your other hand free to guide vehicle positioning or perform quick checks during lifting.
Factory Preassembled Hydraulics
Each 8000TL arrives with its hydraulic system fully preassembled at the factory. This means faster setup, fewer connections, and guaranteed performance right out of the box. Plug it in and start lifting.
Portable and Easy to Store
Despite its added strength, the 8000TL lowers to a slim 3.5-inch profile. Integrated urethane wheels let you roll the lift around your garage or shop effortlessly, making storage quick and easy between uses.

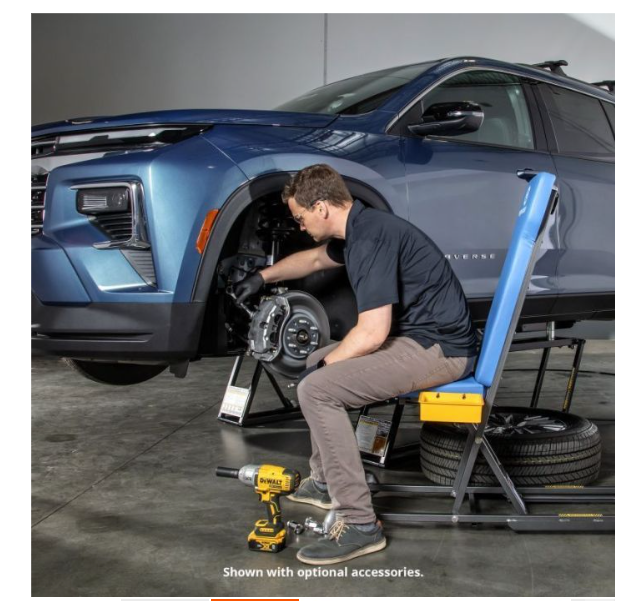

Accessories to Increase Versatility
The 8000TL is compatible with a wide range of QuickJack accessories, including SUV/truck adapters, pinch-weld blocks, and frame extensions. Customize your setup to match your vehicle and job requirements.
Product Specifications
| Lifting Capacity | 8,000 lbs. |
| Lowered Height (w/ 2" Block) | 4" |
| Lifting Height (w/ 2" Block) | 21.5" |
| Lifting Height (w/ 3" Block) | 22.5" |
| Max Lift Height | 24.5" |
| Lift Height (w/ Adapters) | 24.25" |
| Lift Height (Adapters + Pin) | 27" |
| Max Lift Point Spread | 60" |
| Min Lift Point Spread | 37" |
| Frame Width (each) | 12.5" |
| Frame Length (each) | 70.75" |
| Frame Weight (each) | 98 lbs. |
| Time to Full Rise | 30 seconds |
| Power Unit Weight | 15 lbs. |
| Shipping Dimensions (each frame) | 73.75" L × 16.75" W × 6.25" H |
| Shipping Weight | 280 lbs. |
